Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB12
◆Modulation: ASK ◆Voltage: 2.7V~5V ◆Frequency: 315/433.92MHz ◆Bit-rate: 4.8kbps ◆Current: 5.7mA ◆Sensitivity: -107dBm ◆Working temperature: -20℃~+85℃◆Dimension: 30mm(L)*9mm(W)*5mm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB11
◆Modulation: ASK ◆Voltage: 2.7V~5V ◆Frequency: 315/433.92MHz ◆Bit-rate: 4.8kbps ◆Current: 5.7mA ◆Sensitivity: -107dBm ◆Working temperature: -20℃~+85℃◆Dimension: 43.2mm(L)*10.2mm(W)*5mm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB10
◆Modulation: ASK ◆Voltage: 2.7V~5V ◆Frequency: 315/433.92MHz ◆Bit-rate: 4.8kbps ◆Current: 5.7mA ◆Sensitivity: -107dBm ◆Working temperature: -20℃~+85℃◆Dimension: 33mm(L)*11mm(W)*5mm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet

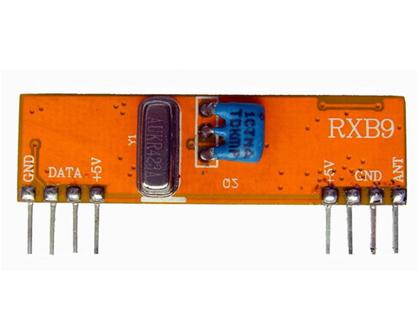

Model: RXB9
◆Modulation: ASK ◆Voltage: 2.4V~5V ◆Frequency: 315/433MHz ◆Bit-rate: 4.6kbps ◆Current: 4.6mA ◆Sensitivity: -114dBm ◆Working temperature: -20℃~+85℃◆Dimension: 43.2mm(L)*12.3mm(W)*5mm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB8
◆Modulation: ASK ◆Voltage: 2.7V~5V ◆Frequency: 315/433MHz ◆Bit-rate: 2kbps-4kbps ◆Current: 10mA ◆Sensitivity: -115dBm ◆Working temperature: -20℃~+70℃◆Dimension: 31cm(L)*13.5cm(W)*5cm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB7
◆Modulation: ASK ◆Voltage: 3.0V~5V ◆Frequency: 315/433MHz ◆Bit-rate: 4.8kbps ◆Current: 5mA ◆Sensitivity: -110dBm ◆Working temperature: -40℃~+85℃◆Dimension: 31.5cm(L)*12.1cm(W)*5cm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet

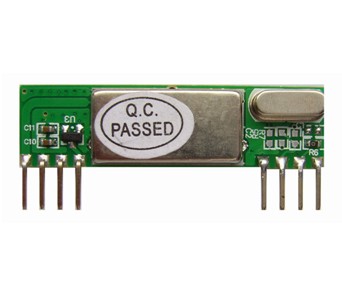

Model: RXB6
◆Modulation: ASK ◆Voltage: 3.0~5.0V ◆Frequency: 315/433.92/868MHz ◆Bit-rate: 9.6kbps ◆Current: 4.6mA ◆Sensitivity: -110dBm ◆Working temperature: -20℃~+85℃◆Dimension: 43.2mm(L)*12.3mm(W)*5mm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB5
◆Modulation: ASK ◆Voltage: 2.7V~5V ◆Frequency: 315/433MHz ◆Bit-rate: 2kbps-4kbps ◆Current: 6mA ◆Sensitivity: -105dBm ◆Working temperature: -20℃~+70℃◆Dimension: 33mm(L)*11mm(W)*5mm(H)
Name: 315~434MHZ ASK SUPERHETERODYNE RECEIVER MODULE
Data Sheet
Model: RXB4
◆Modulation: ASK◆Voltage: 2.7V~5V◆Frequency: 315/433MHz◆Bit-rate: 2kbps-4kbps◆Current: 6mA◆Sensitivity: -105dBm◆Working temperature: -20℃~+70℃◆Dimension: 43mm(L)*12mm(W)*5mm(H)
