RXB1

ASK Receiver Modules

ask downloads
PDF Downloads

Product Key Features

§ ASK or FSK modulation;
§ working Frequancy: 315M/433.92M;
§ Max sensitivity: -116dBm(ASK),-115dBm(FSK);
§ wide supply voltage: VCC= 2.5 to 5.5 V;
§ IF band: 220KHz;
§ low power cosumption: Icc=6.3mA(FM,Vcc=5.0V@434MHz);
§ Wide operating temperature:-45~+85℃ ;
§ Excellent selectivity and noise rejection;
§ Easy for applica; § Analog RSSI Output.

Product Application

•  Garage door and gate openers
•  Remote controls
•  Remote fan and light control
•  Smart home system
•  Alarm and security system

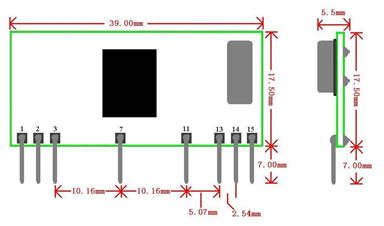

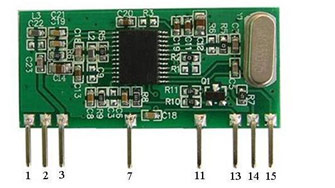

Pin Assignment
