RXB11

RXB11

ASK Receiver Modules

ask downloads
PDF Downloads

Product Key Features

§ Low power consumption and low cost;

§ High frequency stability (no adjust components) & coherence;

§ Very low RF re-radiation at the antenna;

§ Higher sensitivity: -108dBm;

§ Operation temperature: -30℃ ~85℃

§ Supply voltage: 3.0 ~ 5.5v;

§ Low current: 2.8mA(5V);

§ Compatible with most AM (ASK/OOK) transmitters;

Product Application

§ Smart home system

§ Remote controls

§ Remote fan and light control

§ Garage door and gate openers

§ Alarm and security system

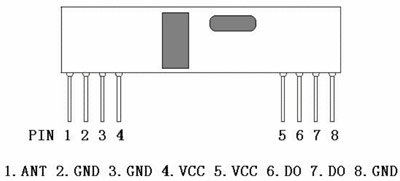

Pin Assignment

rxb11
