RXB12

§ Low cost ASK/AM radio superhet receiver

§ High frequency stability (no adjust components) & coherence

§ Very low RF re-radiation at the antenna

§ Operation temperature -20 ~70 degrees centigrade

§ Supply voltage: 2.8~5.5v

§ Available frequency: 315/433.92MHz (other Frequency customer selectable)

§ Compatible with most AM (ASK/OOK) transmitters

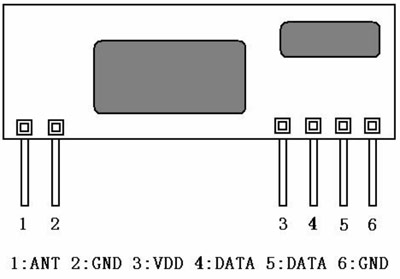

§ Smal package: SIL-6PIN (2.54mm of pin distance)

§ Lead Temperature (soldering, 3s): 330 degrees centigrade

§ Smart home system

§ Remote controls

§ Remote fan and light control

§ Garage door and gate openers

§ Alarm and security system
