§ ASK Demodulation
§ Frequency available as 315 or 433MHz
§ Super Heterodyne RF Receiver
§ CMOS / TTL Output
§ Stable Operating Frequency
§ Low Current Consumption
§ Wide Operating Voltage:3~5VDC
§ High Sensitivity : ‐110dBm
§ Wireless Security Systems
§ Garage Door Controller
§ Remote Gate Controls
§ Data Communications
§ Sensor Reporting

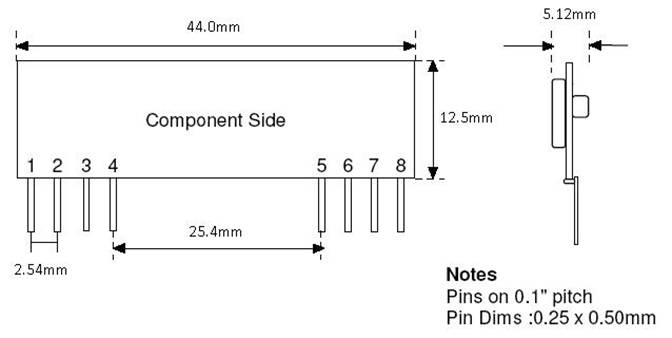

1 ANT 5 VCC
2 GND 6 DATA
3 GND 7 DATA
4 VCC 8 GND
